Application of our dock leveler  :

Our products are widely used in terminals, stations, warehouses and other places. According to the different needs of users, as the special design in terms of dimensions, load bearing and so on. Ramps mounted on the side of the dock, and the dock floor and sides flush.

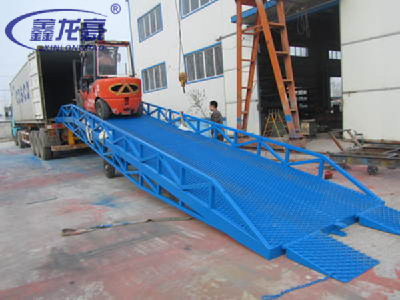

This series are container loading ramp,they are mainly used in cargo table without handling facilities and moving handling place,and it is an auxiliary equipment of cargo handling used together with forklifts,and also its lifting height  is adjustable according to the height of car compartment.With the assistance of container loading ramp,forklift can directly drive into the car compartment to carry out batch handling and greatly improving the  efficiency and safety of loading &unloading cargo.

dock leveler operation process

1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2.Drive the car under the plate.
3.Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain.  The hyraulic system and the tyres of ramp do not carry the weight.
4.Operating starts.
5.When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6.Uplifting the afterbody of the ramp to move around hang on the truck.
