- Place of Origin: Shandong, China
- Brand Name: XINLONGHAO
- Model Number: SJYL0.3-10
- :
- :
- :
- :
- :

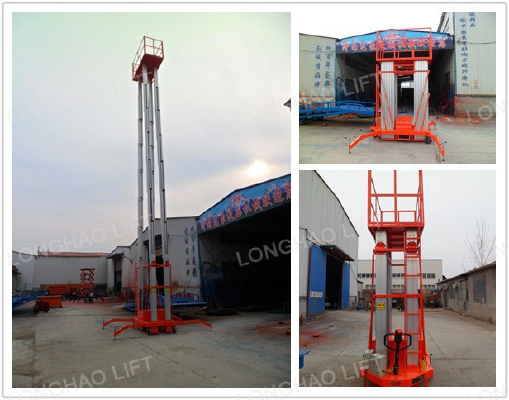

This man lift is adopt high-strength quality aluminum alloy material, with beautiful appearance, small size, light weight, flexible operation, easy to implement. Movements smooth, safe and reliable. It looks light, can play a maximum lifting capacity in a very small space. Widely used in factories, hotels, restaurants, railway stations, theaters, galleries and other places.For the maintenance of equipment, paint decoration, cleaning, replacement of electrical appliances
Our aerial lift description:
A.Aluminum-Alloy-Mast Lifts are made up of high grade aluminum profile.
B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 200kg.The power sources
could be 110,220V,380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
- Place of Origin: Shandong, China
- Brand Name: XINLONGHAO
- Model Number: SJYL0.3-10
- :
- :
- :
- :
- :
Model | Platform size | Loading capacity | Lifting height | Overall dimension mm | Self-weight Kg |
Loading capacity : 300KG | |||||
LHSJY0.3-4 | 2100*820mm | 300kg | 4m | 2200*980*1100 | 750 |
LHSJY0.3-6 | 2100*820mm | 300kg | 6m | 2200*950*1200 | 850 |
LHSJY0.3-7 | 2100*820mm | 300kg | 7m | 2200*950*1280 | 900 |
LHSJY0.3-8 | 2100*900mm | 300kg | 8m | 2200*1060*1380 | 1050 |
LHSJY0.3-9 | 2100*900mm | 300kg | 9m | 2200*1060*1500 | 1200 |
LHSJY0.3-10 | 2100*1200mm | 300kg | 10m | 2200*1350*1530 | 1450 |
LHSJY0.3-11 | 2100*1200mm | 300kg | 11m | 2200*1400*1650 | 1650 |
LHSJY0.3-12 | 2550*1500mm | 300kg | 12m | 2720*1670*1750 | 2400 |
LHSJY0.3-14 | 2550*1500mm | 300kg | 14m | 2800*1800*1950 | 2750 |
LHSJY0.3-16 | 3070*1600mm | 300kg | 16m | 3250*1800*1920 | 3400 |
LHSJY0.3-18 | 3070*1600mm | 300kg | 18m | 3250*1800*2080 | 3600 |
Loading capacity : 500KG | |||||
LHSJY0.5-4 | 2100*800 | 500 | 4m | 2200*1100*1300 | 830kg |
LHSJY0.5-6 | 2100*800 | 500 | 6m | 2200*1100*1300 | 900kg |
LHSJY0.5-7 | 2100*800 | 500 | 7m | 2200*1100*1350 | 950kg |
LHSJY0.5-8 | 2100*900 | 500 | 8m | 2200*1200*1450 | 1100kg |
LHSJY0.5-9 | 2100*900 | 500 | 9m | 2200*1200*1500 | 1260kg |
LHSJY0.5-10 | 2100*1200 | 500 | 10m | 2200*1400*1550 | 1500kg |
LHSJY0.5-11 | 2100*1200 | 500 | 11m | 2200*1400*1700 | 1700kg |
LHSJY0.5-12 | 2550*1500 | 500 | 12m | 2800*1800*1750 | 2480kg |
LHSJY0.5-14 | 2550*1500 | 500 | 14m | 2800*1800*1750 | 2800kg |
LHSJY0.5-16 | 3220*1650 | 500 | 16m | 3600*1950*2200 | 4500kg |
LHSJY0.5-18 | 3220*1650 | 500 | 18m | 3600*1950*2400 | 4800kg |
